    0.03 Mm E Glass Cloth

    Ask Lasest Price
    Brand Name : ShunYuan
    Model Number : We offering multiple models by customer requests. Contact us now to get the more detailed data!
    Certification : ISO9001:2000, JC/T 174-2005, GJB 1679-93
    Price : Contact us for Best Price
    Payment Terms : L/C, T/T
    Supply Ability : We are the REAL factory directly supplying products. We are NOT a trade company. Always Contact us for information and our BEST PRICE
    Delivery Time : 14 days
    • Product Details
    • Company Profile

    0.03 Mm E Glass Cloth


    E glass woven roving fiberglass cloth for Wall / Roof covering Cloth​


    Properties
    No ceramic, no harm to human body.
    Low thermal conductivity, excellent thermal insulation, high resistance to thermal shock
    Super electric insulation
    Inert to majority of chemical reagents
    Good flexibility

    Application:
    It could be used in fields of electrical, ship building, automobile, chemical, construction and fire proof.

    Quick Detail:


    1. Alumino-borosilicate glass
    2. Alkali-free (Less than 1% w/w alkali oxides)
    3. Consists of a defined number of E-glass mono-filaments
    4. Certain diameter of mono-filaments (4-9μm)
    5. Slightly twisted filaments provide strength in radial direction.
    6. Yarns can meet various requirements by changing the diameter, size, twist and the number of mono-filaments

    Specification of E-Glass Fiber Weave Fabric Cloth

    1. Excellent electrical insulation properties
    2. High tensile strength
    3. Good resin impregnation performance
    4. Corrosion resistance
    5. Waterproof
    6. Inorganic
    7. incombustible
    8. Neither expand nor shrink with moisture change

    Specification modelEW30-2-1012
    Delivery timeWithin 14 days
    Technical Specifications
    Fabric thickness(mm)0.03±0.005
    Fabric weight (g/㎡)22.5±2
    Warp density (root/cm)22±2
    Weft density (root/cm)6±1
    Breaking strength (N/25mm)220±40
    Fabric length (m)6500±100
    Fabric width (m)≥1.01
    Fabric appearanceDefects ≤20/100m

    Packing


    Fiberglass fabric is wound on a paper tube with inner diameters of 50.8, 76 or 152mm. Each roll is wrapped in a plastic bag, then to be packed in a carton box. The rolls are to be horizontally placed.


    Storage


    Rolls Store in a Cool, Dry location

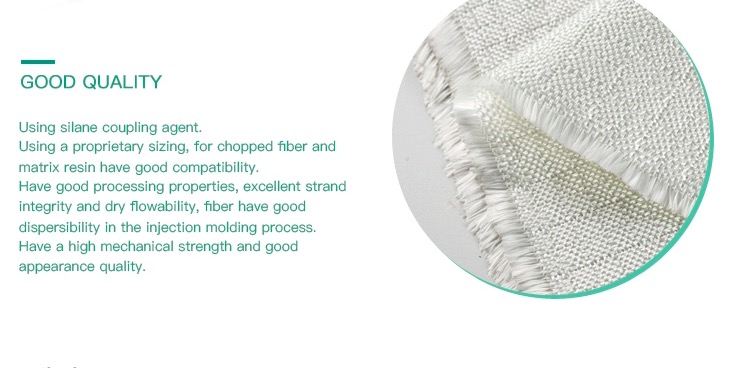

    Detailed Images

    * Woven from best quality texturized glass fiber yarn.
    * High quality, warm keeping thermal insulator, it is the ideal substitute of the asbestos cloth.
    * The texturized fiberglass cloth can be offered to insert stainless steel wire.
